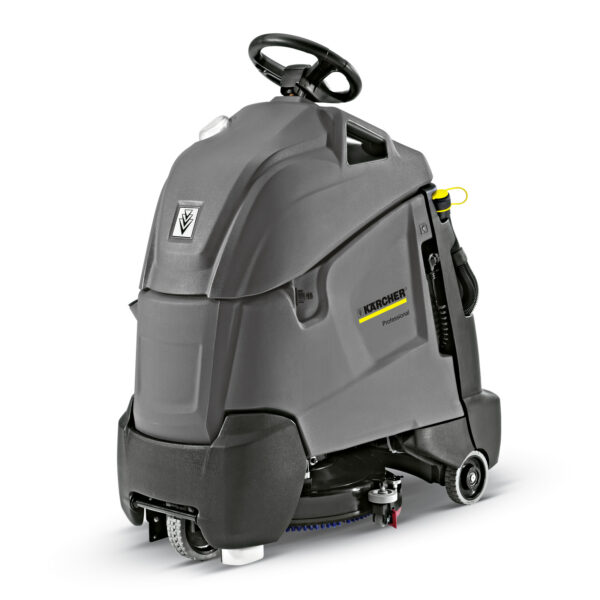

Kärcher BD 50/40 RS Bp Scrubber Drier
Compact step-on scrubber drier with disc engineering, 51-cm working width, 40-l tank and approx. 120-cm turning circle.With Eco mode for energy-saving and environmentally friendly cleaning.
- Description
- Specifications
Description
Kärcher BD 50/40 RS Bp Scrubber Drier – Compact step-on scrubber drier with disc engineering, 51-cm working width, 40-l tank and approx. 120-cm turning circle. With Eco mode for energy-saving and environmentally friendly cleaning.
The very compact and efficient step-on scrubber drier BD 50/40 RS Bp combines the manoeuvrability of a walk-behind machine with the speed of a ride-on machine. The small turning circle of approx. 120 cm makes possible very high area coverage, even in narrow, winding areas. The elevated operating position provides an optimal overview. The sophisticated disc engineering with large disc brushes guarantees maximum cleaning efficiency. Thanks to the squeegee, which can be swivelled around the brush head, the dirty water can be fully absorbed when turning on the spot. The squeegee can be changed within seconds without the need for any tools. The integrated sweeping unit makes time-consuming pre-sweeping almost superfluous. The Eco mode of the machine can be activated at the touch of a button. Eco mode allows maintenance cleaning to be carried out in an energy-saving and environmentally friendly manner and saves time and costs – with perfect cleaning results at the same time.
Easy operation
Easy to use.
eco!efficiency mode saves time, energy, water and cleaning agent.
Automatic filling option
The machine is simply connected to the water supply. The water supply is automatically shut off when the machine is filled to capacity.
This saves time, as the operator can do other jobs in the meantime.
Eco mode
Saves time, energy, water and cleaning agent.
Easy to use controls
Only 1 button for all cleaning settings. For concise and simple operation and a reduced need for training.
Easy changeover
Suction lips and brushes can be replaced without using tools.
Vacuum bars can be replaced in no time at all.
Unique squeegee rotating principle
For absorbing every drop of water in every corner.
Highly manoeuvrable
For excellent manoeuvrability, large area coverage and less re-cleaning.
Compact dimensions
Full view from 30 cm in front of the vehicle. For predictive cleaning.
Compact design
Easy to transport and store.
Technical data
Working width of brushes (mm) | 510 |
Working width, vacuuming (mm) | 691 |
Tank of fresh/dirty water (l) | 40 / 40 |
Theoretical area performance (m²/h) | 2805 |
Practical area performance (m²/h) | 2000 |
Brush rotational speed (rpm) | 180 |
Brush contact pressure (g/cm²/kg) | 20 / 26 |
Battery (V) | 36 |
Battery runtime (h) | max. 2.5 |
Sound pressure level (dB(A)) | 66.9 |
Water consumption (l/min) | 1.5 |
Traction motor (W) | 157 |
Drive type | Battery |
Drive | Traction motor |
Total permissible weight (kg) | 330 |
Dimensions (L x W x H) (mm) | 1118 x 691 x 1316 |
Equipment on the Kärcher BD 50/40 RS Bp Scrubber Drier
- Disc brush
- Squeegee, curved
- Powerful traction drive
- Automatic water stop
- 2-tank system
Technical data
Working width of brushes (mm) | 510 |
Working width, vacuuming (mm) | 691 |
Tank of fresh/dirty water (l) | 40 / 40 |
Theoretical area performance (m²/h) | 2805 |
Practical area performance (m²/h) | 2000 |
Brush rotational speed (rpm) | 180 |
Brush contact pressure (g/cm²/kg) | 20 / 26 |
Battery (V) | 36 |
Battery runtime (h) | max. 2.5 |
Sound pressure level (dB(A)) | 66.9 |
Water consumption (l/min) | 1.5 |
Traction motor (W) | 157 |
Drive type | Battery |
Drive | Traction motor |
Total permissible weight (kg) | 330 |
Dimensions (L x W x H) (mm) | 1118 x 691 x 1316 |
Equipment
- Disc brush
- Squeegee, curved
- Powerful traction drive
- Automatic water stop
- 2-tank system
