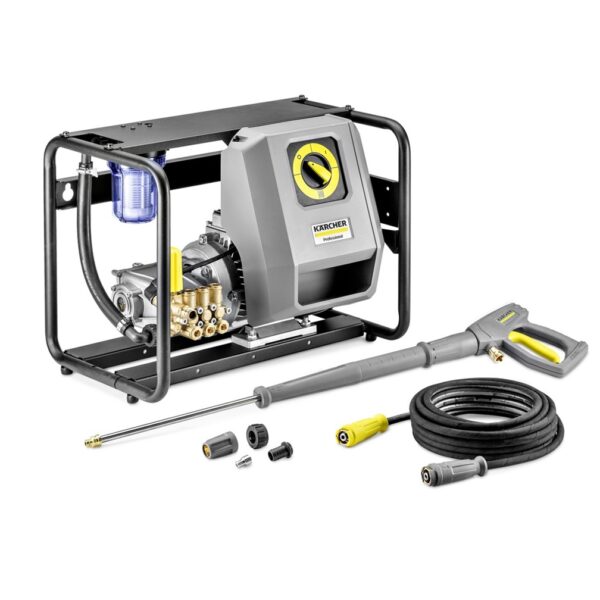

HD 9/18-4 M ST Classic High-pressure cleaner
Stationary, robust high-pressure cleaner with steel frame, durable crankshaft pump and 4-pole low-speed motor for reliable and low-maintenance operation.
- Description
Description
The Karcher HD 9/18-4 M ST Classic High-pressure cleaner is a stationary high-pressure cleaner characterised by its robust design and high-quality components. Versatile in use, this middle-class appliance is ideal for cleaning vehicles, production facilities and agricultural machinery. The durable crankshaft pump with a brass cylinder head and suction function handles water temperatures of up to 60 °C and allows the water volume and working pressure to be regulated. The 4-pole low-speed motor reduces wear and tear on the pump, which is additionally protected by an integrated water filter. All important components are easily accessible thanks to the modular design, which simplifies maintenance. The well thought-out design is complemented by EASY!Lock connections for quick accessory replacement and clever storage possibilities.
Robust, stationary chassis
A robust tubular steel frame reliably protects the machine against damage.
Sturdy tubular steel frame protects all components.
Integrated storage space for accessories.
Robust crankshaft pump with brass cylinder head
High performance and high efficiency.
Long service life and low maintenance costs.
With suction feature and up to 60 °C water temperature.
4-pole low-speed electric motor
Reduced motor speed for less pump wear.
Long engine life.
Only very low engine vibrations.
Large integrated water filter
Easy-to-access water filter protects the pump against dirt particles in the water.
Effectively protects the pump from contamination.
Easy to use, easy to clean
Classic accessories with EASY!Lock connections
Robust and durable accessories.
Quick set-up and pack-up plus easy accessory replacement.
Easy and intuitive to operate.
Technical data
| Number of current phases (Ph) | 3 |
| Voltage (V) | 380 – 415 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 500 – 900 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 35 – 180 |
| Max. pressure (bar) | 240 |
| Connected load (kW) | 6.5 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Water inlet | 1″ |
| Colour | anthracite |
| Weight (with accessories) (kg) | 61 |
| Weight incl. packaging (kg) | 69.5 |
| Dimensions (L × W × H) (mm) | 698 x 410 x 498 |
Scope of supply
Spray gun: Standard
Spray lance: 840 mm
Power nozzle
Equipment on the Karcher HD 9/18-4 M ST Classic High-pressure cleaner
High-pressure hose length: 10 metre
High-pressure hose specification: DN 8, 315 bar
Pressure cut-off
